Insulate 045 6309-2RZ/CSB.C4

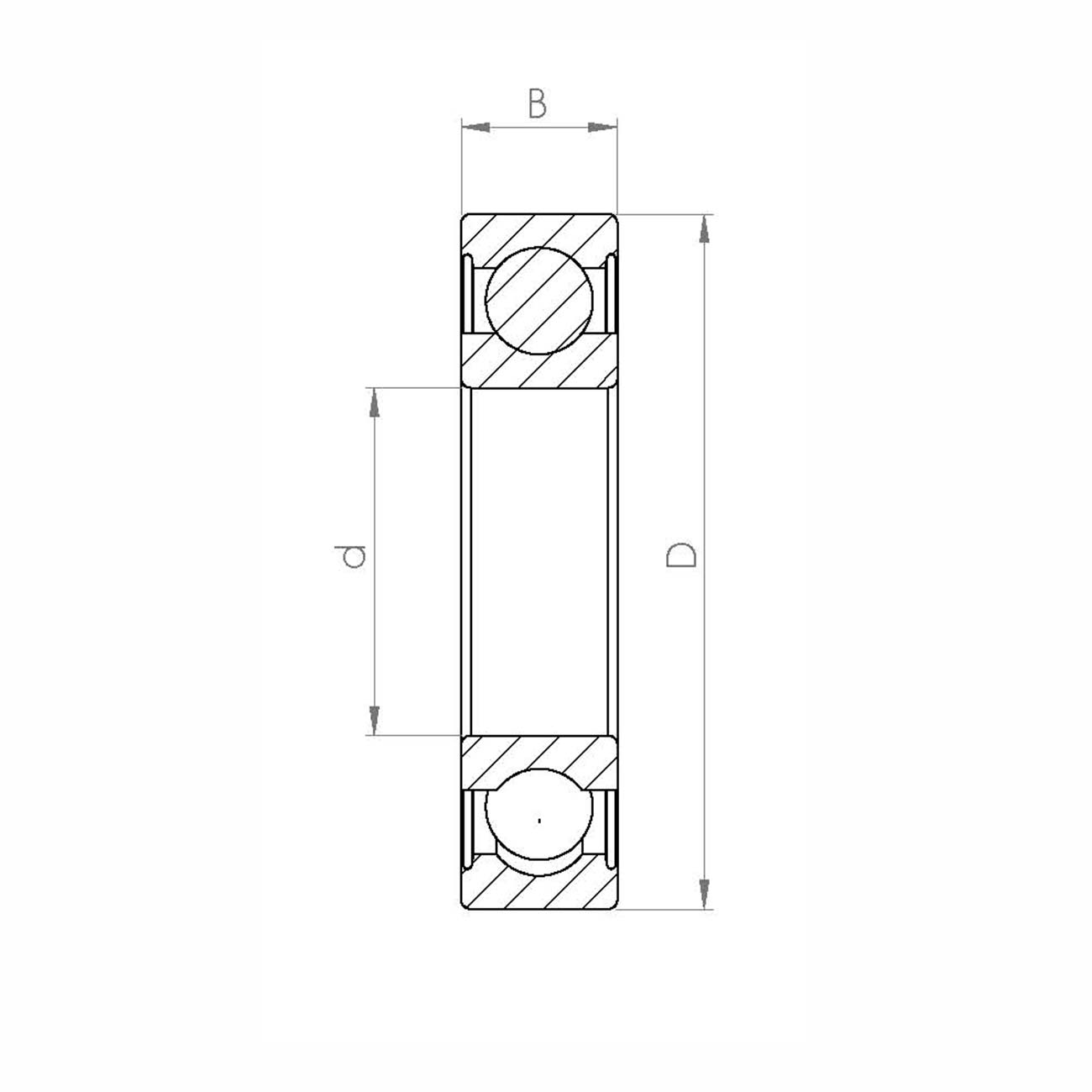

d (Bore diameter) mm
45.0
D (Outside diameter) mm
100.0
B (Width) mm
25.0
Ring Material
Chromium Steel (SAE 52100)
Seals
2RZ
Cage
PA66 (TN9)
Load Rating Dynamic (C) [kN]
55.3
Load Rating Static C0 [kN]
25.2
Radial Clearance
C4
Limiting Speed (rpm)
10500.0
Net weight (gram)
746.0
Item Number
100601
Category
Deep Groove Ball Bearings
Ball Material
Silicon Nitride (Si3N4)
