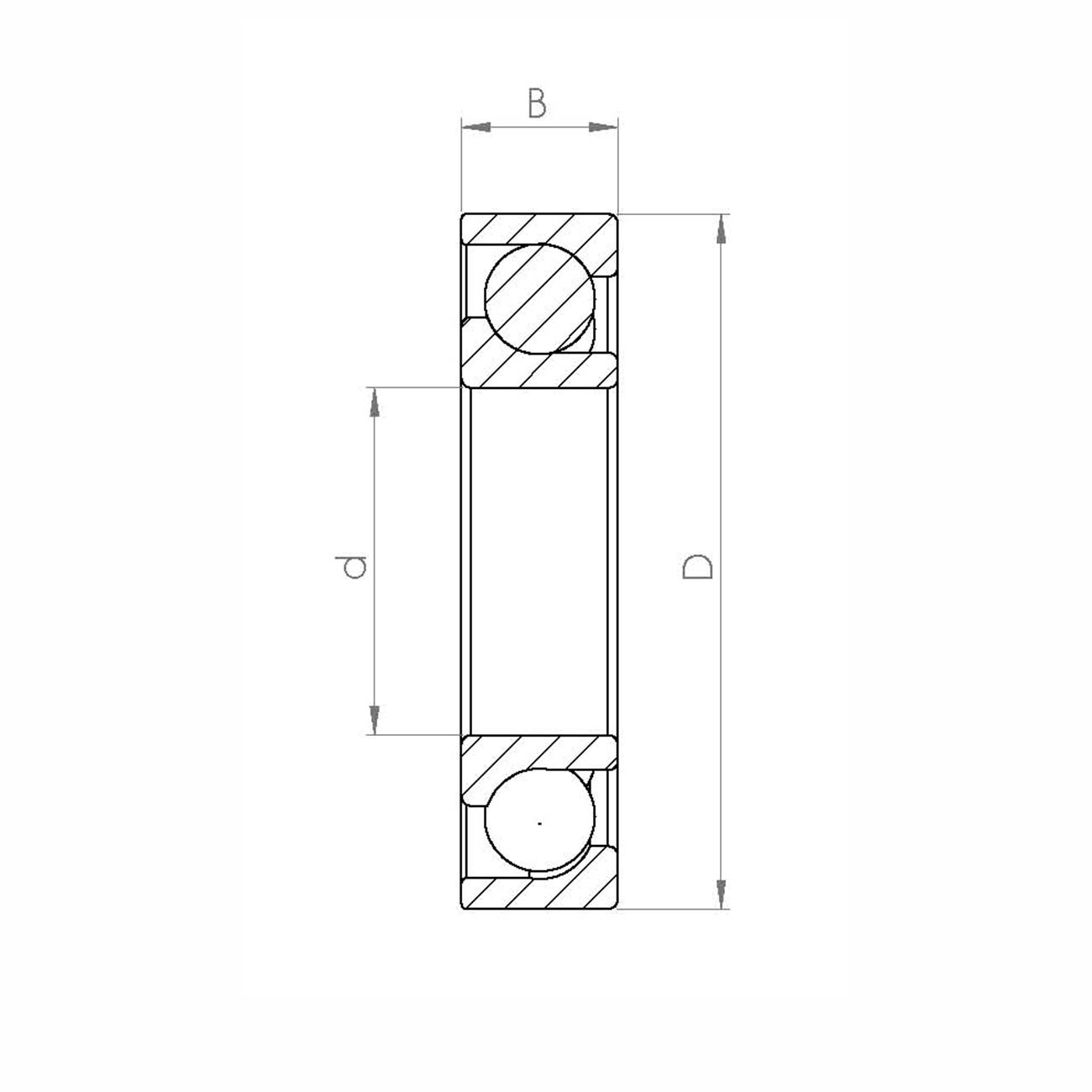

Xtreme 040 7308-40˚-2RZ/CSB
d (Bore diameter) mm
40.0
D (Outside diameter) mm
90.0
B (Width) mm
23.0
Ring Material
Chromium Steel (SAE 52100)
Seals
2RZ
Cage
PA66 (TN9)
Load Rating Dynamic (C) [kN]
50.0
Load Rating Static (C0) [kN]
26.0
Limiting Speed (rpm)
14000.0
Net weight (gram)
626.0
Item Number
108457
Category
Angular Contact Ball Bearings
Contact Angle
40
Ball Material
Silicon Nitride (Si3N4)
