Xtreme 017 3203-2RS/CSB IO.CCoat

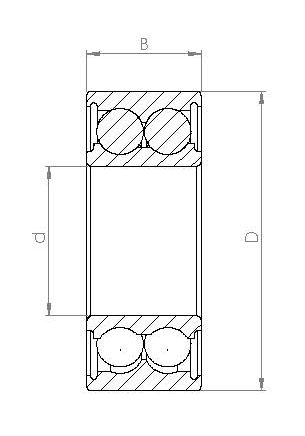

d (Bore diameter) mm
17.0
D (Outside diameter) mm
40.0
B (Width) mm
18.0
Ring Material
Chromium Steel (SAE 52100)
Seals
2RS
Cage
PA66 (TN9)
Load Rating Dynamic (C) [kN]
14.3
Load Rating Static (C0) [kN]
7.04
Limiting Speed (rpm)
12000.0
Item Number
108984
Category
Double Row Angular Contact Ball Bearings
Contact Angle
30
Ball Material
Silicon Nitride (Si3N4)
